- Tire Size: 9 inch
- Model Number: KuKirin G3
- Category: Two-wheel Scooter
- Applicable People: Unisex
- Range Per Charge: 40-60km
- Charging Time: 6-8h
- Voltage: 48v
- Folded: YES
- Power (W): 501-1000w
- Origin: Mainland China
- max motor: 1450W
- max range: 63 KM
- max speed: 50km/h
- max Load: 120kg
- 1st, 2nd, 3rd (idling): 25km/h, 35km/h, 50km/h
- Climbing ability: ≤23° slope
- Brake system: Front and rear disc brake & e-brake
- Battery: 52V 18Ah
- Front shock absorber: Spring shock adsorption
- Rear shock absorber: Spring shock adsorption
- Certificate:

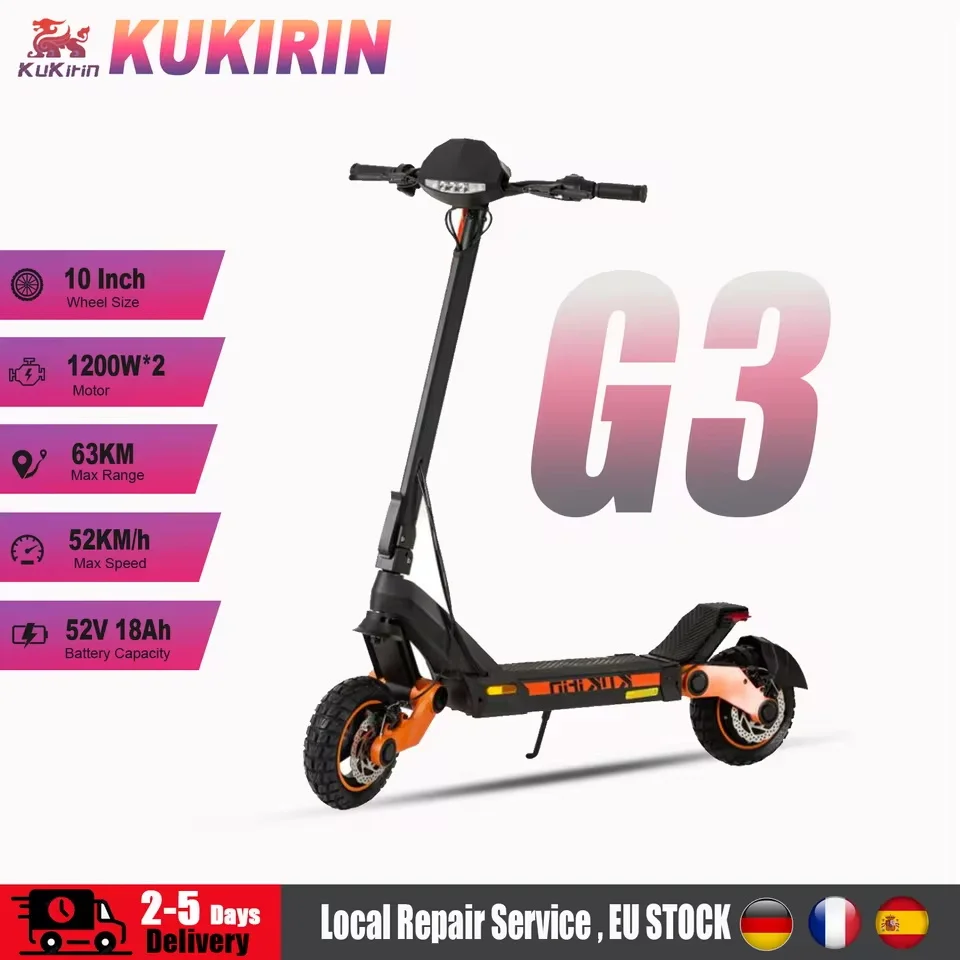

KuKirin G3 Electric Scooter Peak 1450W Motor 63km Max Range 52V 18Ah 52KM/H Speed Touchable Display Control Off-road EScooter
>>Highlights
All-in-one Solid Design
The frame is made of high-strength aluminium alloy and designed in one piece with no welds, which is solid and good-looking. Thanks to the all-in-one design, KugooKirin G3 is tougher and more durable, perfect for your cross-country ride!

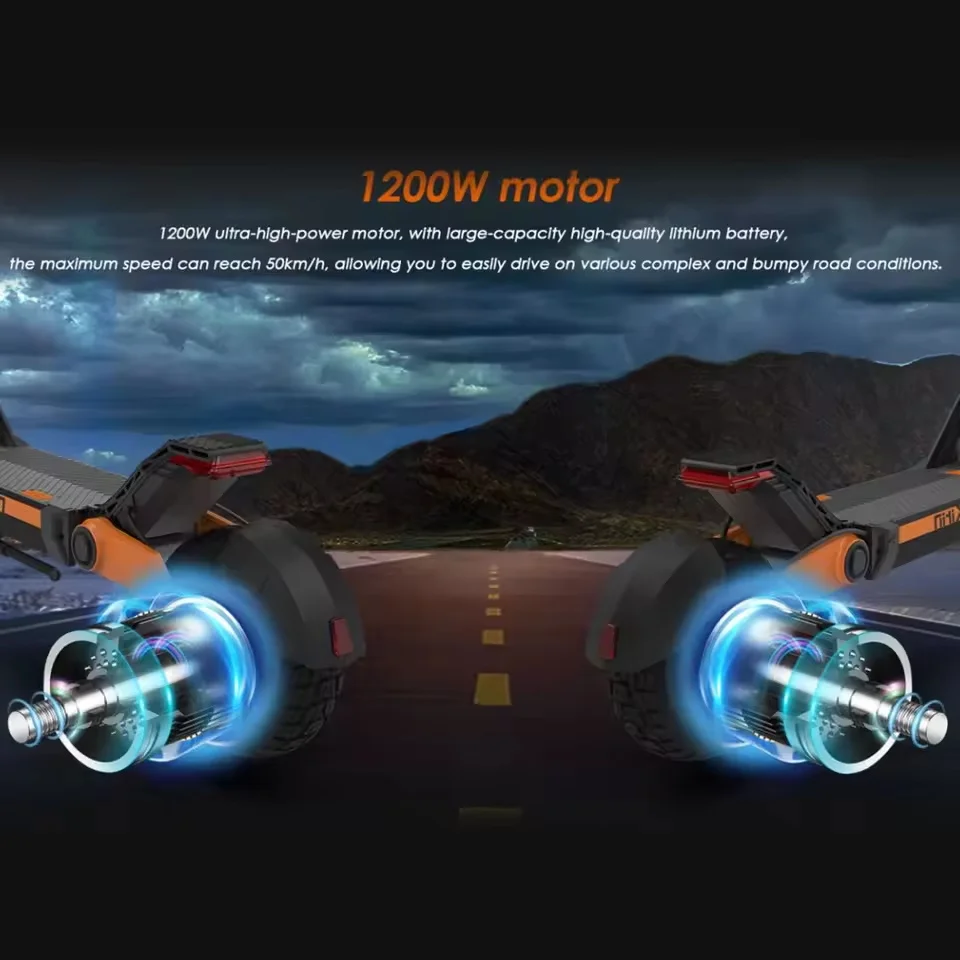

1200W Strong Motor
The 1200W powerful motor with dual heat dissipation provides you with constant and strong power, enabling the e-scooter to speed up to 50km/h. Running with G3, your ride will be more powerful and more durable.

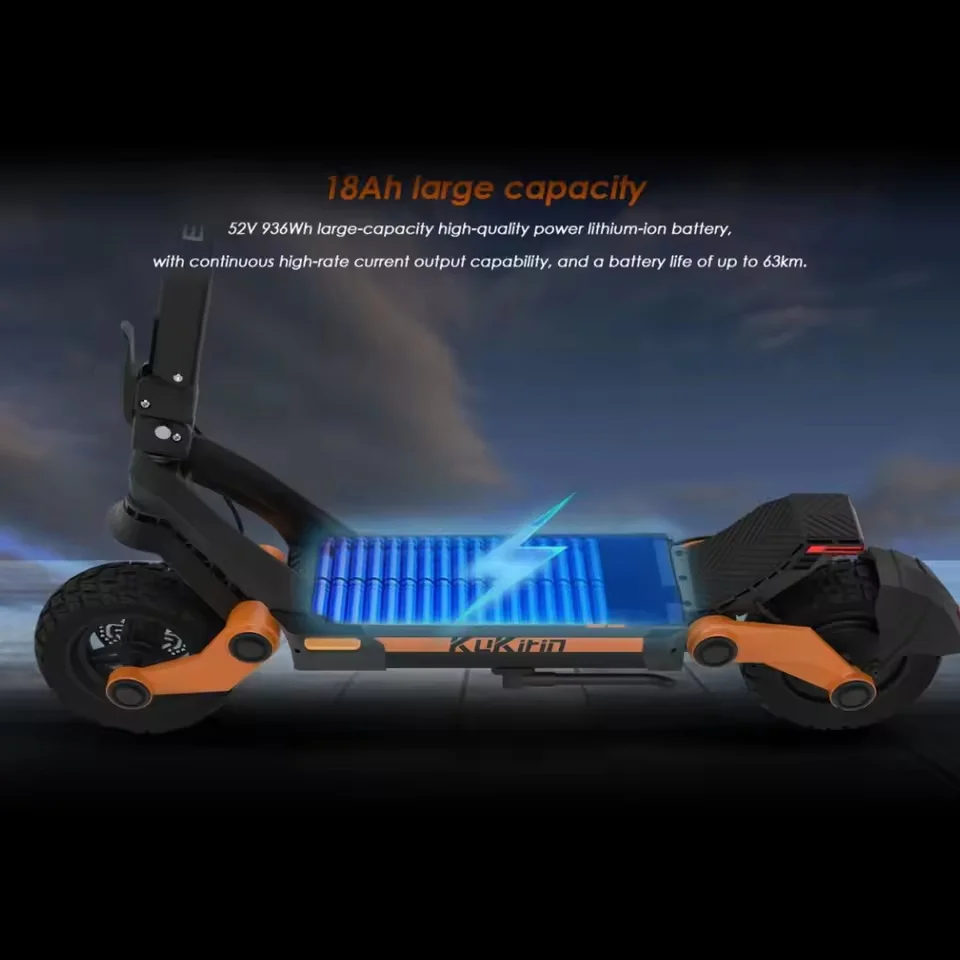

18Ah Large Battery
Equipped with an 18Ah large lithium-ion battery pack, KugooKirin G3 can run up to 60km on a full charge, which is definitely a great partner for your long-distance ride!
Climbing up to 30°
Thanks to the strong power supply, KugooKirin G3 is able to adapt to a variety of terrains and climb an uphill slope of 30°. Your cross-country ride will have more fun and excitement.

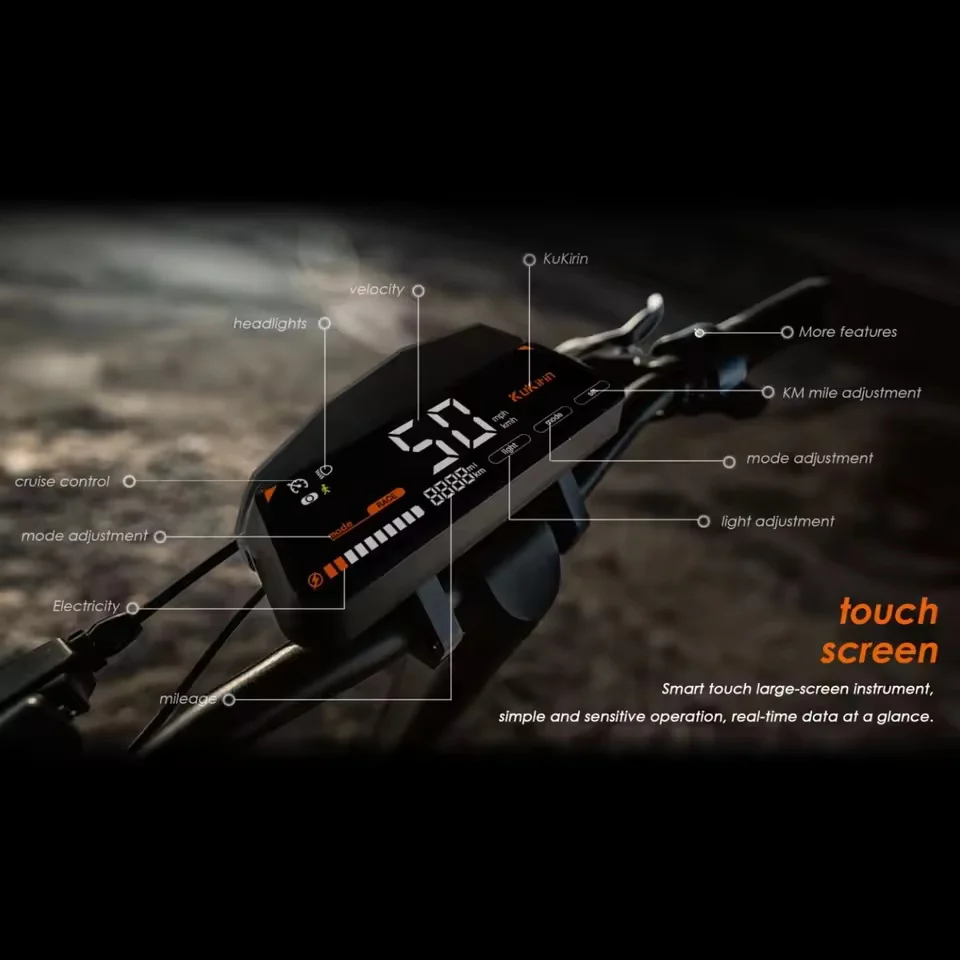

LED Touch Display
The advanced LED touch display is designed for showing various real-time data, such as speed and battery power, and also for multi-function control, which makes your ride smarter, easier and more interesting.
>>Specification
|
Product Parameters
|
|
Model
|
G3
|
|
Package
|
Size
|
1200*290*595MM
|
|
G.W.
|
31+/-1KG
|
|
Basic Spec.
|
Unfolded Size
|
1200*1290*660MM
|
|
Folded Size
|
1200*550*660MM
|
|
N.W.
|
25+/-1KG
|
|
Length of Handlebar
|
660MM
|
|
Height of Footboard(above the ground)
|
180MM
|
|
Size of Footboard
|
220MM*475MM
|
|
Max. Load
|
100KG
|
|
Waterproof Level
|
IPX4
|
|
Material of Frame
|
Aluminium Alloy
|
|
Speed Level
|
Level 1
|
25KM/H
|
|
Level 2
|
35KM/H
|
|
Level 3
|
50KM/H
|
|
Braking System
|
Front & Rear Disc Brakes + EBS
|
|
Uphill
|
30°
|
|
Max. Range
|
70KM
|
|
Braking Distance
|
≤4m
|
|
Max. Speed
|
50KM/H
|
|
Max. Idle Speed
|
60KM/H
|
|
Motor
|
Rated Power & Voltage
|
1200W, 48V
|
|
Max. Instant Power
|
≥1000W (Under a limit of 25A)
|
|
Max. RPM
|
1000rpm
|
|
Max. Output Torque
|
≥25N.m (Under a limit of 25A)
|
|
Accelerating Mode
|
Sine Wave
|
|
Type
|
One-piece Hub Motor
|
|
Battery
|
Capacity
|
18Ah
|
|
Voltage
|
52V
|
|
Charging Time
|
8h~10h
|
|
Protection System
|
BMPB-509-14S-20A-02M43-0546GXX
|
|
Standard Power Consumption
|
936Wh
|
|
Brand
|
Yonglida
|
|
Charger
|
Input Voltage & Current
|
100~240V, 3A
|
|
Output Voltage & Current
|
58.8V, 2A
|
|
LED Headlight
|
LED Qty
|
2 (Left & Right)
|
|
Power
|
1W
|
|
Beam Angle
|
60°
|
|
Tire
|
Size
|
10.5" (10.5"x2.75"-6.5")
|
|
Type, Material
|
Pneumatic, Rubber
|
|
Best Tire Pressure
|
220-230kpa
|
|
Brake Disc
|
Outer Diameter
|
140MM
|
|
Thread Root Diameter
|
33.3MM
|
|
Display
|
Type
|
LED Touch Display
|
|
Size
|
175*52MM
|
|
Content
|
Speed/Battery Power/Distance/Temperature/Current/Voltage/Cruise Control/Speed Mode/Start Mode/Light Mode/Mileage Unit
|
|
Function
|
Activating cruise mode, removing speed limit, switching mileage/speed unit, speed mode, light mode, etc.
|
|
APP
|
Compatible with
|
G3, MINI2
|
|
Package List
|
1 x Electric Scooter, 1 x Charger
|
|
1 x Manual, 1 x Tool Kit
|
|
Note: the max range is achieved under the following conditions: 65kg load, 25℃temperature, at speed level 2, with no strong wind. The braking distance is
achieved by dry braking at a speed of 15km/h.
|
|
