EKD01 Bluetoothi navigatsiooniekraan 8 keeles LCD-ekraan elektriratta arvutile BAFANG mootorikomplekti intelligentsele kontrollerile UART CAN protokolliga

EKD01 Display

For Bafang Mid Motor – Ebike Display for BBS02B, BBS-HD, BBS01B Electric Bicycles Mid Motor, for E-Bike Conversion Set UART and CAN Protocol Optional 5-Pin Female Connector

Ebike Display  EKD01

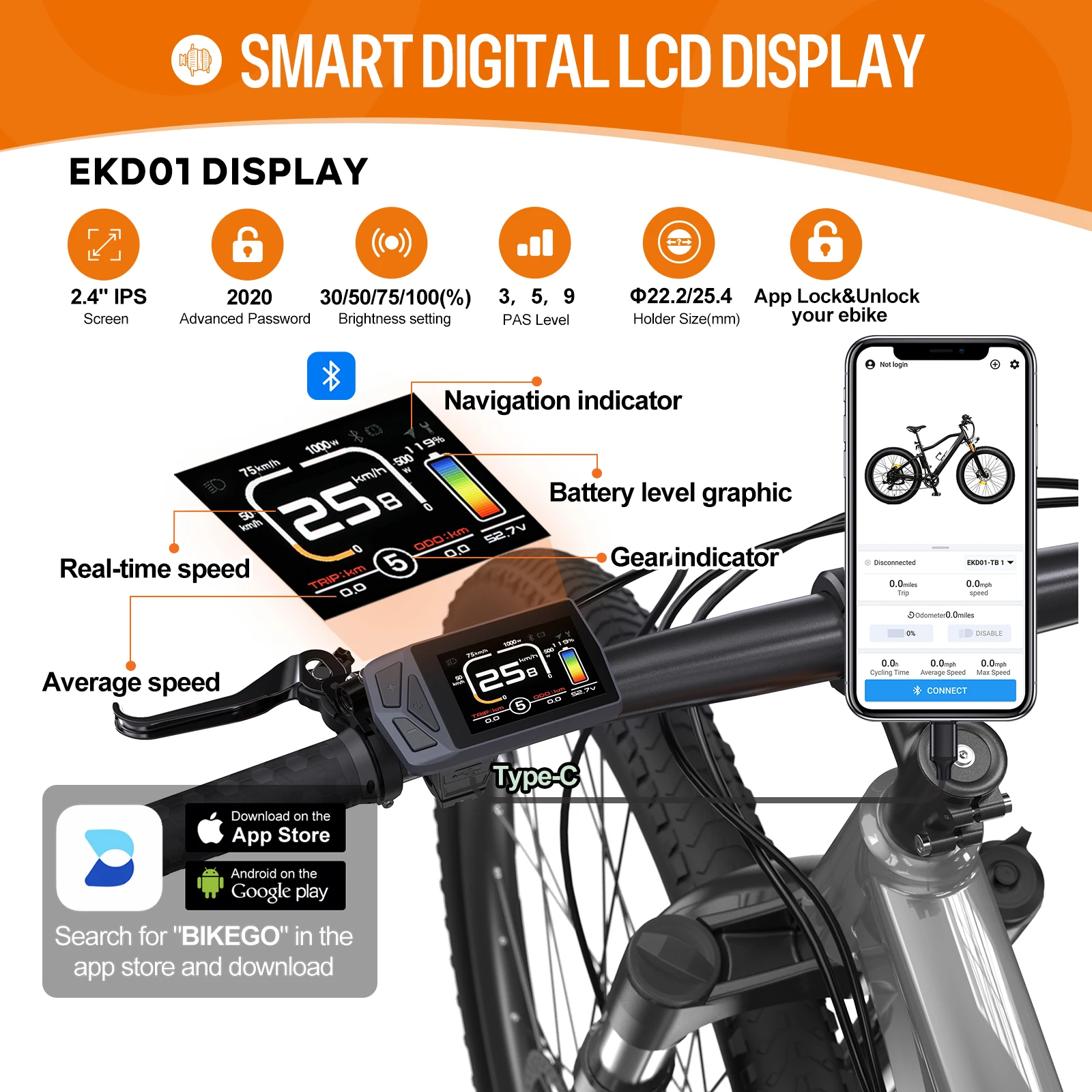

1 Headlight indicator: The headlight indicator graphic will light up when
the headlight is on.

2 Navigation indicator: If the BIKEGO app is connected to the instrument,
the symbol will light up when navigation begins. (Live navigation requires
payment).

3 Maintenance tip: Electronic systems have some ability to self-diagnose
and report limited faults. The failure is reported as an error code displayed on the
screen.

4 Brake indicator: This icon lights up when the vehicle performs a brake
operation.

5 Bluetooth indicator: After the APP is successfully connected to the
instrument, the symbol will light up.

6 Battery Level graphic: The Battery Level graph is a graphical
representation of the remaining charge in the battery. After the battery is

charged, more bars will appear in the graph. When the battery runs out, fewer
bars appear.

7 Real-time speed: Displays the current speed at which the e-bike is
traveling.

8 Real-time power: Displays the current power at which the e-bike is
traveling.

9 Gear indicator: Displays the current assist gear of the electric bike.

10 Single mileage: The number of miles in a single trip.

11 Total Mileage: The total number of miles traveled by the vehicle.

12 Real-time voltage/electricity: Display the voltage situation or electricity

of the battery in real-time synchronization.

Teave see ese

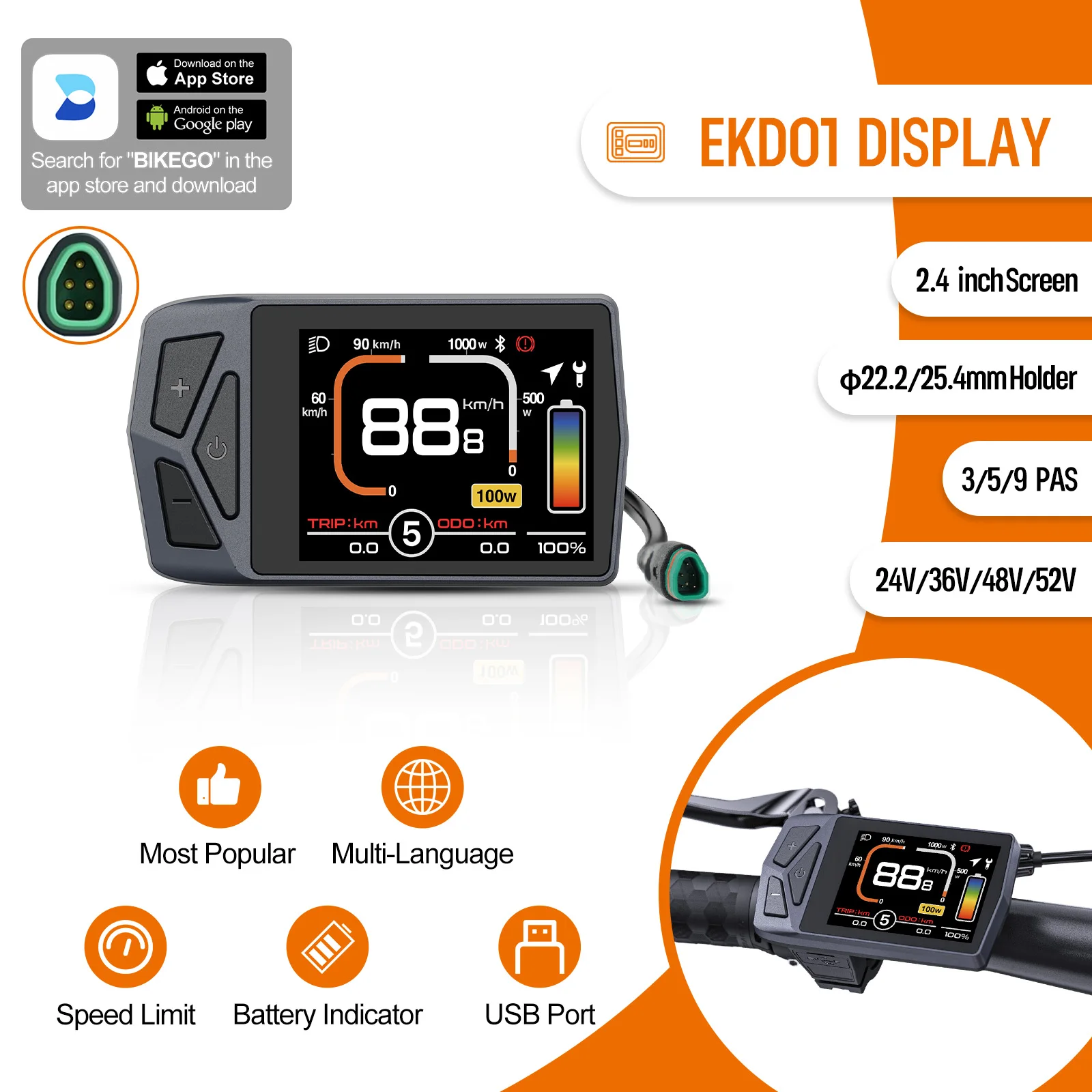

EKD01 TFT LCD display: Consists of a 2.4 inch IPS colour display and three integrated buttons, it is a good choice for beginners. It offers an affordable price, easy operation and basic features, including optional 0-9 PAS levels and a Type-C charging port

[Compatibility & Installation] The EKD01 display is exclusively compatible with BAFANG electric motors that use the UART communication protocol versions 5.0 to 5.8. It fits handlebars with a diameter of Ø22.2/25.4 mm and its plug is a 5-pin round female connector. If you are not sure about the compatibility, please contact us before purchase

[Appearance & Material] Slim, modern design with a large, easy-to-read display. The case is made of high quality ABS plastic. Waterproof according to IP 67

The EKD01 has 9 adjustable languages (English, French, German, Spanish, Italian, Polish, Chinese, Dutch and Czech). The navigation feature makes it easy to find your way to your destination (5 free trials, then paid). Compared to other models, the odometer (ODO) can be set to zero

Please note that this LCD display is NOT compatible with all engines. Look closely at the second image on this product page. If you are not sure about the compatibility, please email us
