Q130 1:14 70KM/H 4WD RC Car With Light Brushless Motor Remote Control Cars High Speed Drift Monster Truck Toys for Adults Kids

NOTE :

1. This is not an ordinary toy remote control car, because the remote control car is too fast, it is recommended to use remote control car in open areas to avoid bumping into obstacles.

2. The retail package is made of foam boxes, which can reduce the damage to the product during transportation. Original boxes are not included.

Please note when using the battery:(selling separate batteries, please contact me if needed)

1. When the battery is dead, it must be charged in time to ensure that the battery has surplus power. If the battery is completely empty, the battery will not be able to charge

2. When charging the battery, disconnect the connection from the remote control car. Be sure to take the battery out to charge it separately

3. If you do not use the remote control car, please disconnect the battery from the wire of the remote control car, absolutely do not connect, and fully charge the battery, otherwise it will damage the battery

1:14 70KM/H 4WD RC Car With LED Light Remote Control Cars High Speed Drift Monster Truck for Kids

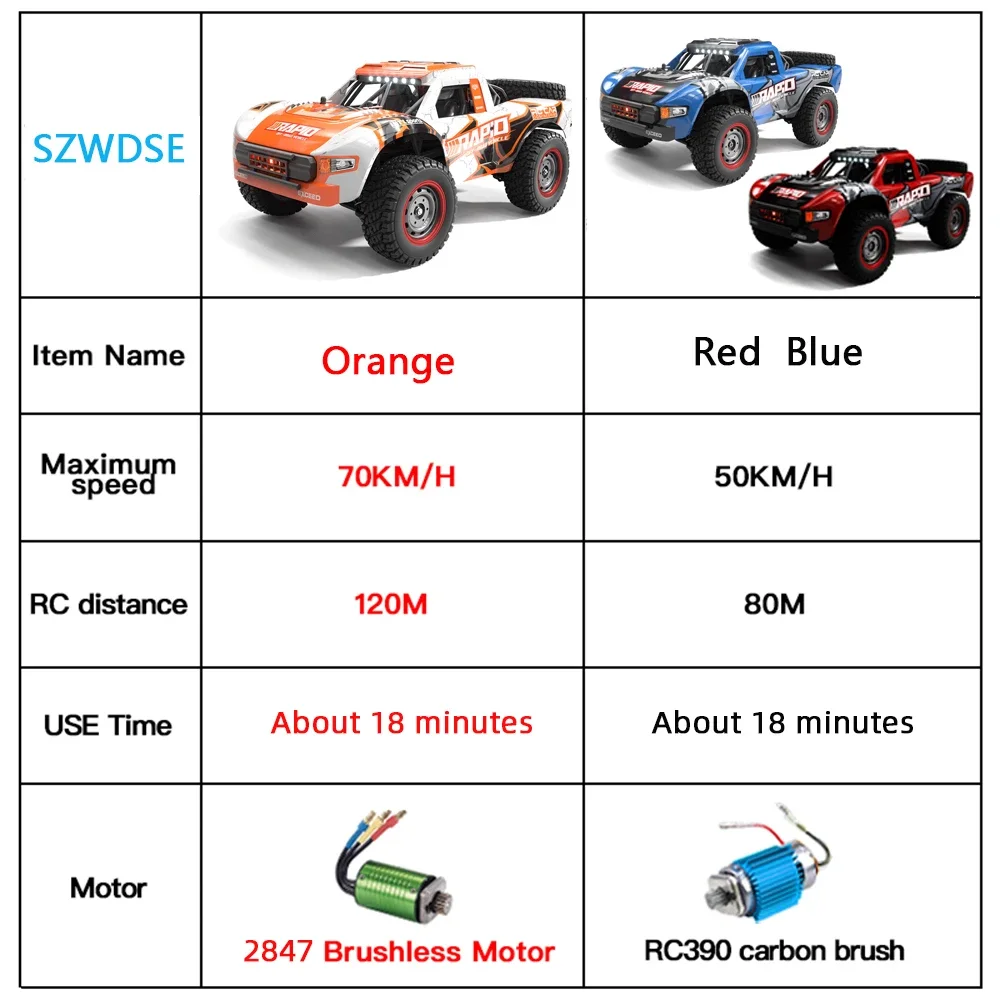

Note: Please note to distinguish the model before purchasing the order. The model parameters are as follows:

Product configuration: Electric four-wheel drive off-road vehicle (UDR)

Product material: hardware; electronics; plastic

Product Size:34.5*20.5*14.8 CM

Color: blue / red (with brush), orange (brushless)

Body battery: brush: 7.4V 1300mAH 15C lithium-ion battery (T plug) Brushless: 7.4V 1500mAH 15C lithium-ion battery (T plug)

Operation time:15-18 minutes (continuous full speed running)

Remote control battery: 3 "AA" (not pack)

Charging time:3-3.5 hours (USB balance charge)

Frequency:2.4GHz (support multiple cars on the same field)

Remote control category: full scale synchronous control system (gun control)

ESC/Receiver:35A ESC/Receiver integrated control (splash-proof)

Speed:Brush: 50km/h (top speed) Brushless: 70KM/h

Light configuration:LED headlight, LED dome light, LED tail dome light

Remote control distance (m):≥120m

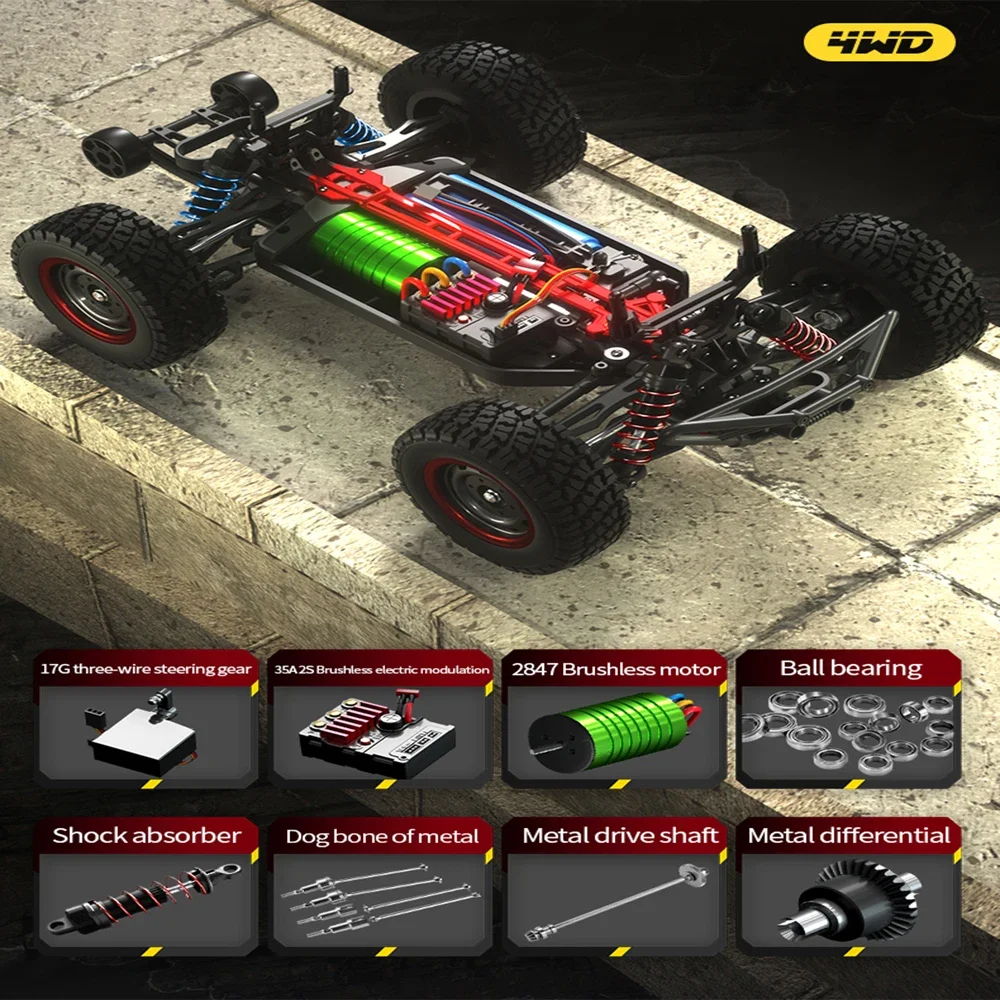

Motor: brushed: RC390 high-speed carbon brush strong magnetic (magnetic protection + heat sink) brushless: 2847 brushless motor (4000 KV value)

Servo: brushed: five-wire 17G steering servo,brushless: three-wire 17G digital servo

Wheelbase parameters:wheelbase: 185mm; wheelbase: 188mm; wheel diameter: 85mm

Differential structure:planetary gear differential

Protection function: 1. charging; 2. jamming; 3. high temperature; 4. low pressure

Function:

1. The use of simulation structure design, with real car control feeling, to achieve full proportional stepless speed, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn.

2. Applicable sites: flat, sand, mud, grass.

3. 4WD drive: front and rear upright spring damping, double-wishbone independent suspension system.

4. 2.4G full-proportional synchronized remote control system . Full proportional throttle/steering.

5. 2.4G splash-proof four-way 30A integrated ESC/receiver.

6. Front wheel cross ball joint drive shaft, rear wheel split dog bone drive shaft.

7. Five-wire 17G servo.

8. Super battery power: 7.4V, 18650-1500/1300mAh Li-ion battery (T plug), discharge rate 10C.

9. The whole car with 16 ball bearings.

10.Metal second floor plate, metal front and rear arm code, metal mid-drive shaft.

11.The shell adopts high toughness explosion-proof PVC shell.

12. The shell is equipped with LED headlights, LED dome light, LED tail dome light; (three modes: constant light, slow flash, fast flash).

13. Simulation of off-road tires, strong grip.

Accessories: 1) the whole car; 2) remote control; 3) Chinese and English instructions; 4) lithium battery; 5) USB balance charge; 6) tail; 7) head-up wheel; 8) shock adjustment buckle; 9) metal pins; 10) hexagonal sleeve; 11) brushless version of the instruction booklet insert

Remark:

1: Charging protection: constant current and voltage balanced charging, protection function for battery overcharge and overcurrent.

2: Motor anti-seize protection: the motor stops working when overloaded

3: high temperature protection: when the working temperature is higher than the set situation, the drive control circuit to stop working, and then resume work after the temperature drops to a safe value.

4: ESC low voltage power-off function, battery below 6.3-6.4V or so, automatic power-off to prevent damage to the battery over discharge.
