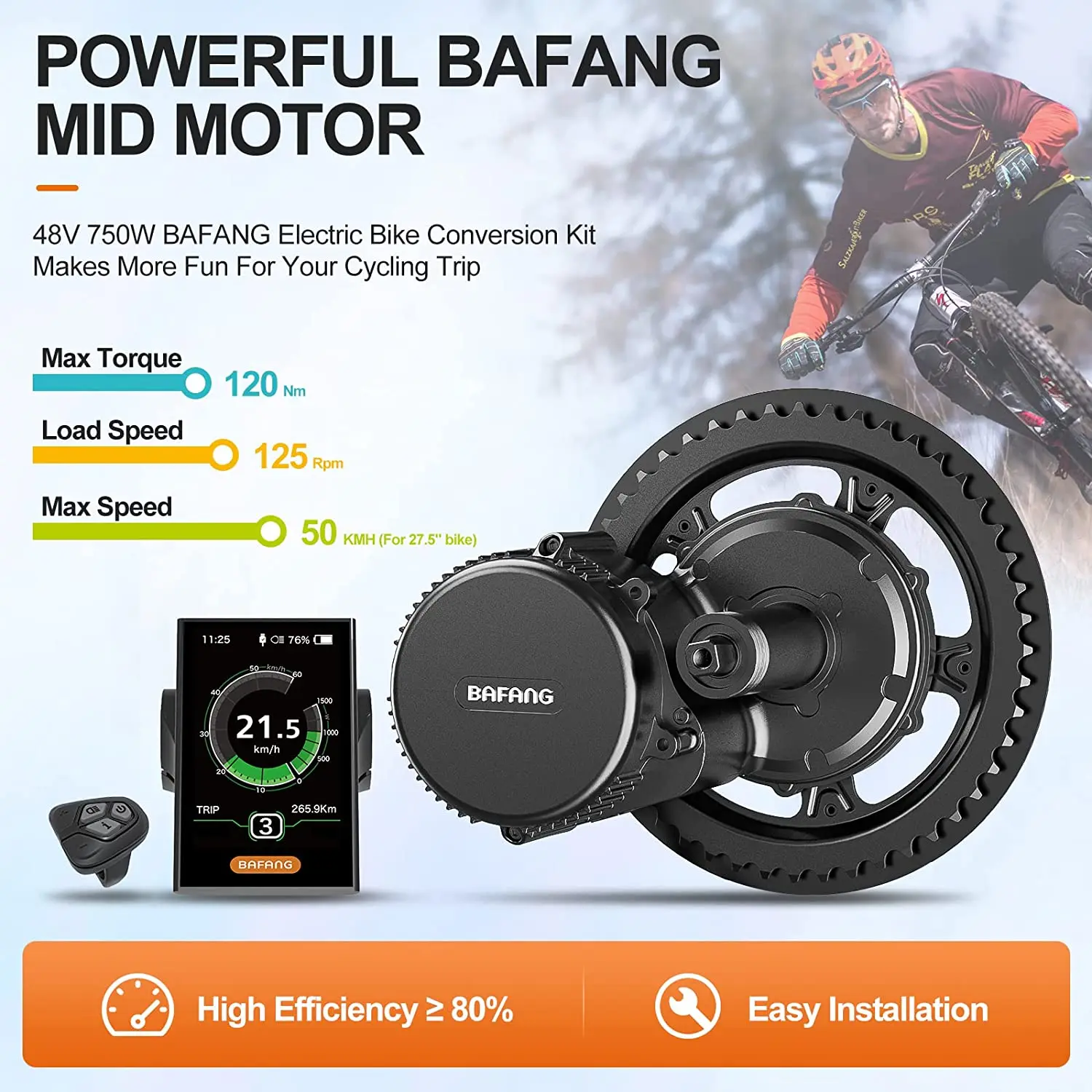

BAFANG 48V 750W 68MM 73MM 100MM Mid Motor Kit 8Fun BBS02B Electirc Ebike Conversion Kit With 20Ah 17.5Ah Hailong Battery Pack

MID-DRIVE  SYSTEMS

Bafang products convince by highest quality with best flexibility. We offer a variety of drive systems for different applications to provide the user with the best driving experience at all times. Learn more about Bafang and Power your Life.

Technical  Parameters

Power Output, Nominal Power: 750W . Peak Power: Up to 1000W (depending on controller and battery configuration) . Peak Torque: Can reach up to 120 N·m (with certain configurations). Maximum Speed: Generally up to 28-32 mph (45-50 km/h) depending on local regulations and bike setup. Normal Operating Temperature: -10°C to 40°C (14°F to 104°F)  Storage Temperature: -20°C to 60°C (-4°F to 140°F) . Smart System Integration: Integration with mobile apps or advanced controllers that allow for more customizability of power delivery.

Battery Option

Form follows function. Both elegant and practical, semi-integrated batteries make lighter frames possible, while also allowing easy handling, charging and storage. Combining high power and light weight, downtube batteries offer a convenient and dependable package for any kind of eBike and rider experience.

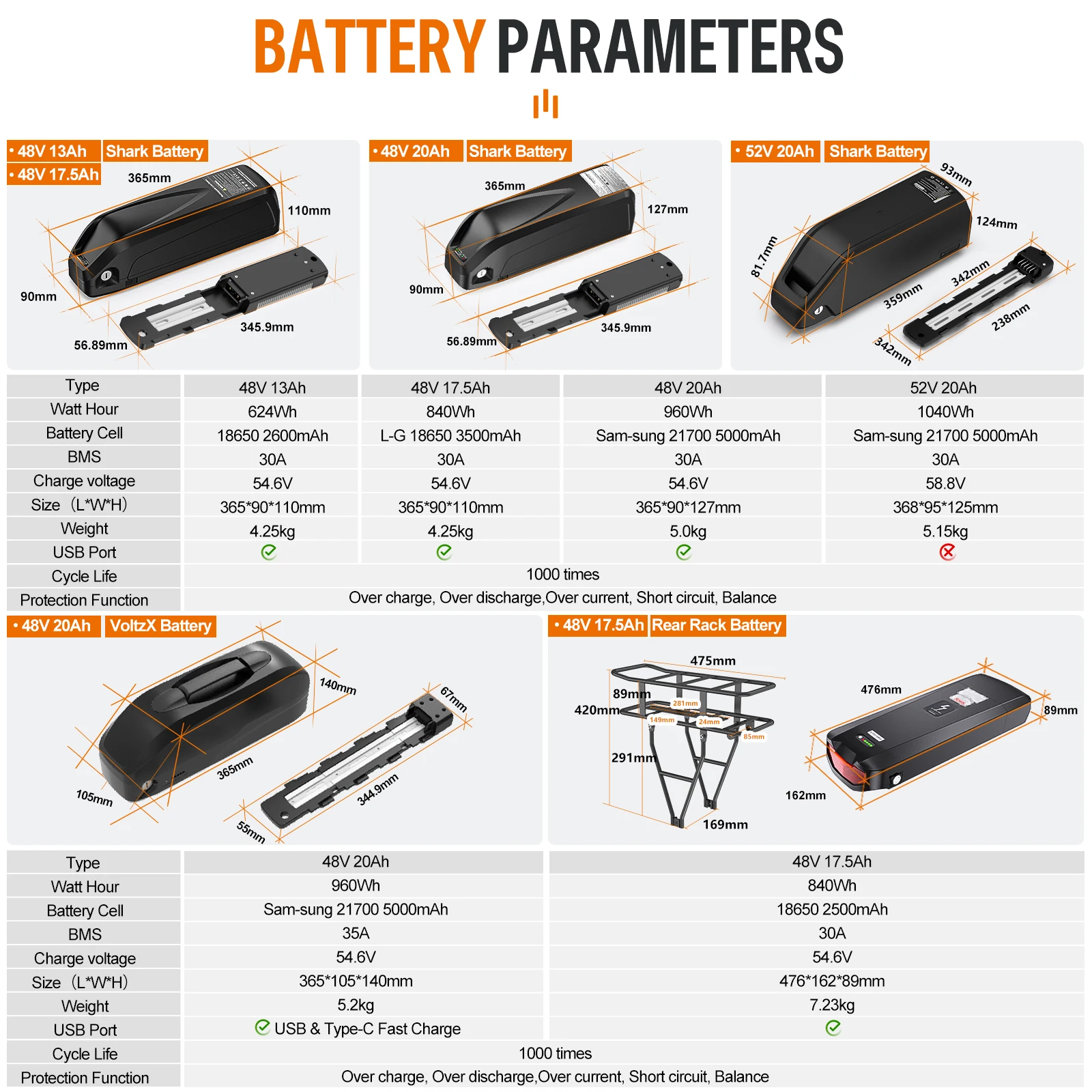

For the 48v 750w mid motor , It could work with the 48V or 52V battery . We provide that 13Ah 17.5Ah 19.2Ah and 20Ah Capacity for you to choose .  For the battery shape , It could choose that Downtube or the Rear Rack version .

DISPLAYS OPTION

All the display have the basic function in riding . The main differences of the ebike displays are the interface , screen and holder size , specific function (check the display image below)

EASY INSTALLATION

Easy to convert your bike to an electric bike in short time. Feel free to contact us for the manual & installation video. Featured with integrated controller and torque sensor , the motor is safer and stronger. High efficiency and low consumption , nobody can resist this excellent motor

Wide Application Scenarios

BAFANG 48V 750W Mid Motor is versatile enough to handle a wide range of cycling scenarios, from casual recreational rides to more demanding off-road and commuting conditions. Its powerful torque, efficient performance, and smooth integration with the bike’s gears make it an excellent all-around choice for most types of e-biking.

Summary of Key Applicable Riding Scenarios:

City Commuting: Smooth, efficient, and balanced for urban rides.

Mountain Biking: High torque for tough terrain and steep climbs.

Touring: Long-distance and mixed-terrain rides with excellent range.

Recreational Riding: Easy and enjoyable for leisurely weekend rides.

Hill Climbing: Excellent for steep areas and hilly routes.

Cargo & Utility: Handles additional load with ease.

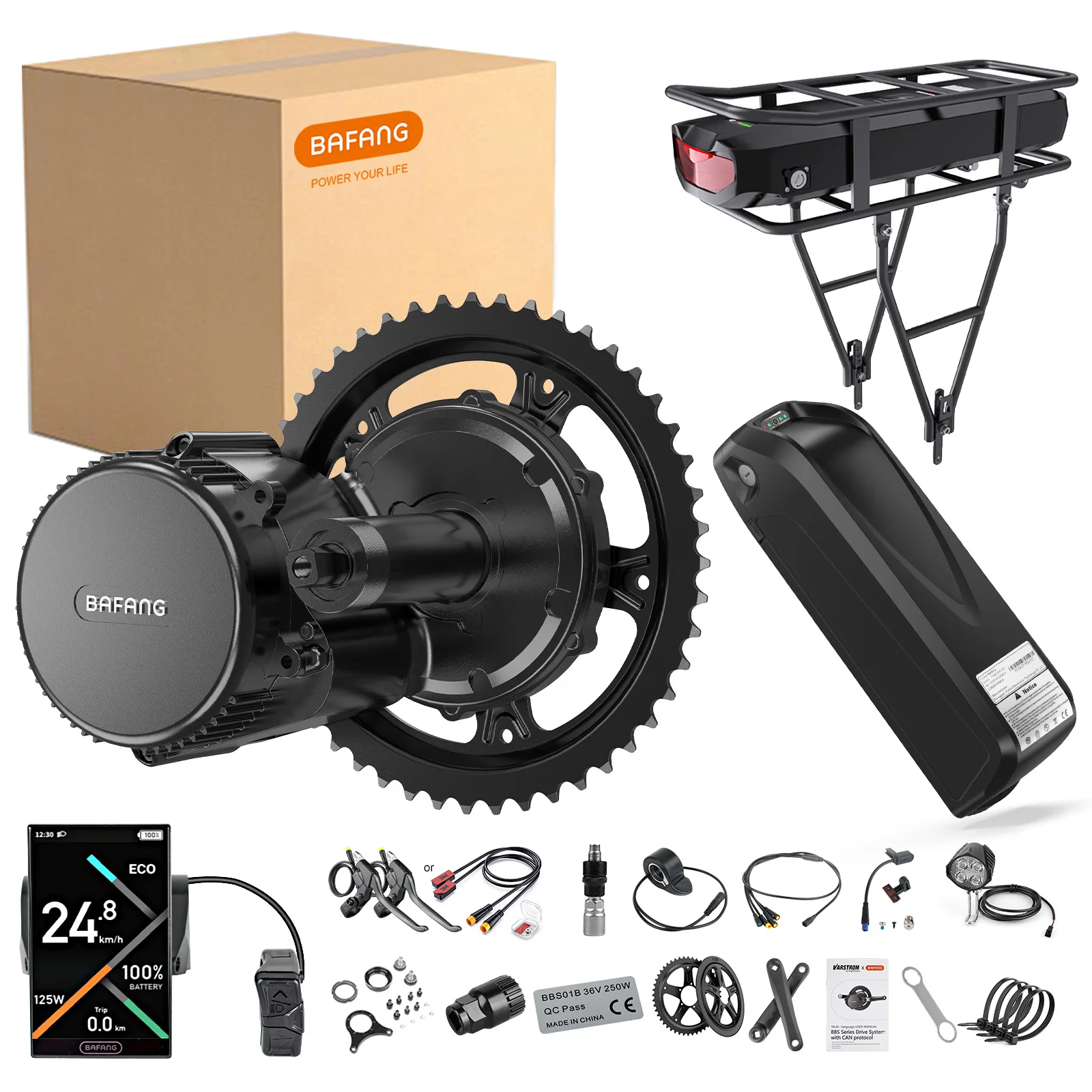

Packing List:

1 PC Bafang Mid Drive Motor

1PC Ebike Battery & Charger (Optional)

1 PC Chainwheel (Optional)

1 Pair Brake Lever or Brake Sensor (Optional)

1 PC Display (Optional)

1 Pair Crank

1 Set Thumb Throttle

1 Set Speed Sensor

1 PC 4 in 1 Cable

1 Set Accessories

Free Gifts:

1 PC 6V Front Light

1 PC Install Tool Wrench

1 PC Crank Remove Tool

1 PC XT60 Port Motor Battery Connector Cable

1 Set Install Accessories for 73MM Bottom Bracket

4 PCS 36V 250W Stickers (Only for 350W/500W/750W/1000W motor kits)

1 Set Cable Ties

1 PC User Manual

About BAFANG

Bafang, one of the leading manufacturers of e-mobility components and complete e-drive systems, has been developing solutions for electric vehicles since 2003. The company focuses on all global e-mobility trends of the future: whether for individual e-bikes, e-scooters or for public bike-sharing schemes.The head office, development and manufacturing center is based in Suzhou, near Shanghai. Bafang has Sales and Service Centers in the Netherlands, in the USA, in Germany, in France, in Italy , in Denmark and in Taiwan, China. The newly opened factory in Poland will focus on production of mid motors systems for the European markets.

Having cooperated with BAFANG for lots of years, Greenergy ,BAFANG Official Authorized Agent Seller in Aliexpress ,is a professional store specializing in BAFANG mid drive kit and Electric bike. Greenergy Devotes to provide high-quality products for customers.

Global Service & Warehouse

We have France /Poland /Germany /Spain /Italy warehouse or Repaired Point , you can expect to receive your packges in about 2-7 days.. ALL products owns one-year warranty & 24-hour customer service. We have professional techs in the EU that can give you technical support and help you fix the problems
