Harjadeta alalisvoolumootorite komplektid, 72 V 3000 W BLDC mootorikomplekt kontrolleri, drosselklapi ja klahvilukuga, harjadeta mootorratta mootorratas Ebike

Taotlus

This harjadeta motor kit is suitable for electric scooters, electric bikes, go-karts, electric bikes, electric tricycles, mid-engine kits, complete sets, DIY engine systems, bicycle accessories, etc.

Spetsifikatsioon

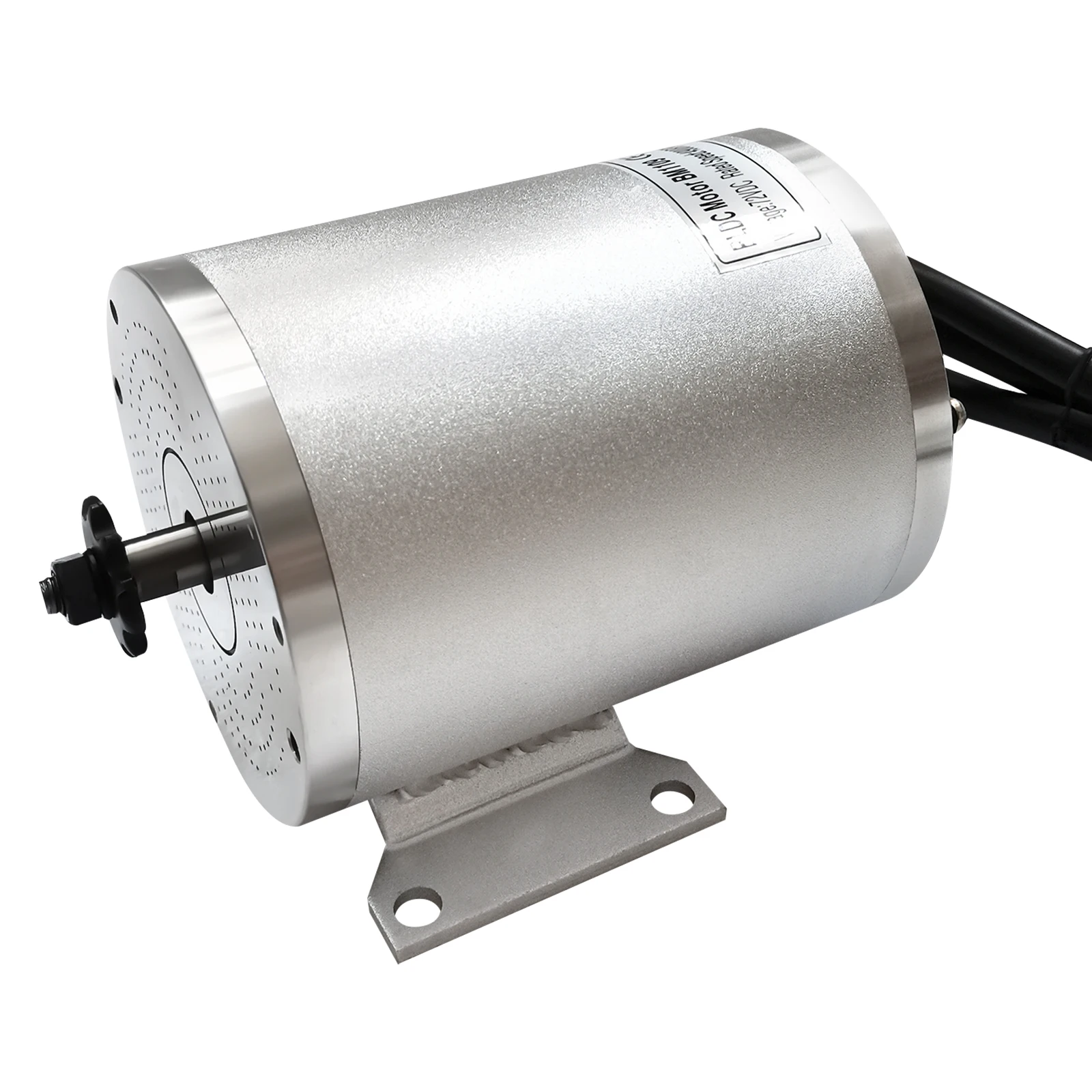

Motor Model: MOTOR BM1109

Material: Aluminum, Copper, Rubber

Motor Type: High-speed BLDC Harjadeta Mootor

Motor Voltage: 72V

MotorOutput: 3000W

MotorRated Speed: 4900r/min 6600RPM (MAX)

MotorDiameter: 107mm/4.21in

Distance between Two Motor Screw Holes: 9.5cm/3.74in

MotorRated Torque: 5.44N.m

MotorApplication Chain: T8F Sprockt / Chain

ControllerPower: 3000w

ControllerVoltage: 60-72V DC

ControllerCurrent: 80A

ControllerMosfet: 24WF

ControllerTurn Under Voltage: 0.8-4.2V

Brake Potential: High Level Brake/Low Level Brake

Kit Weight: About 8kg/17.63lbs

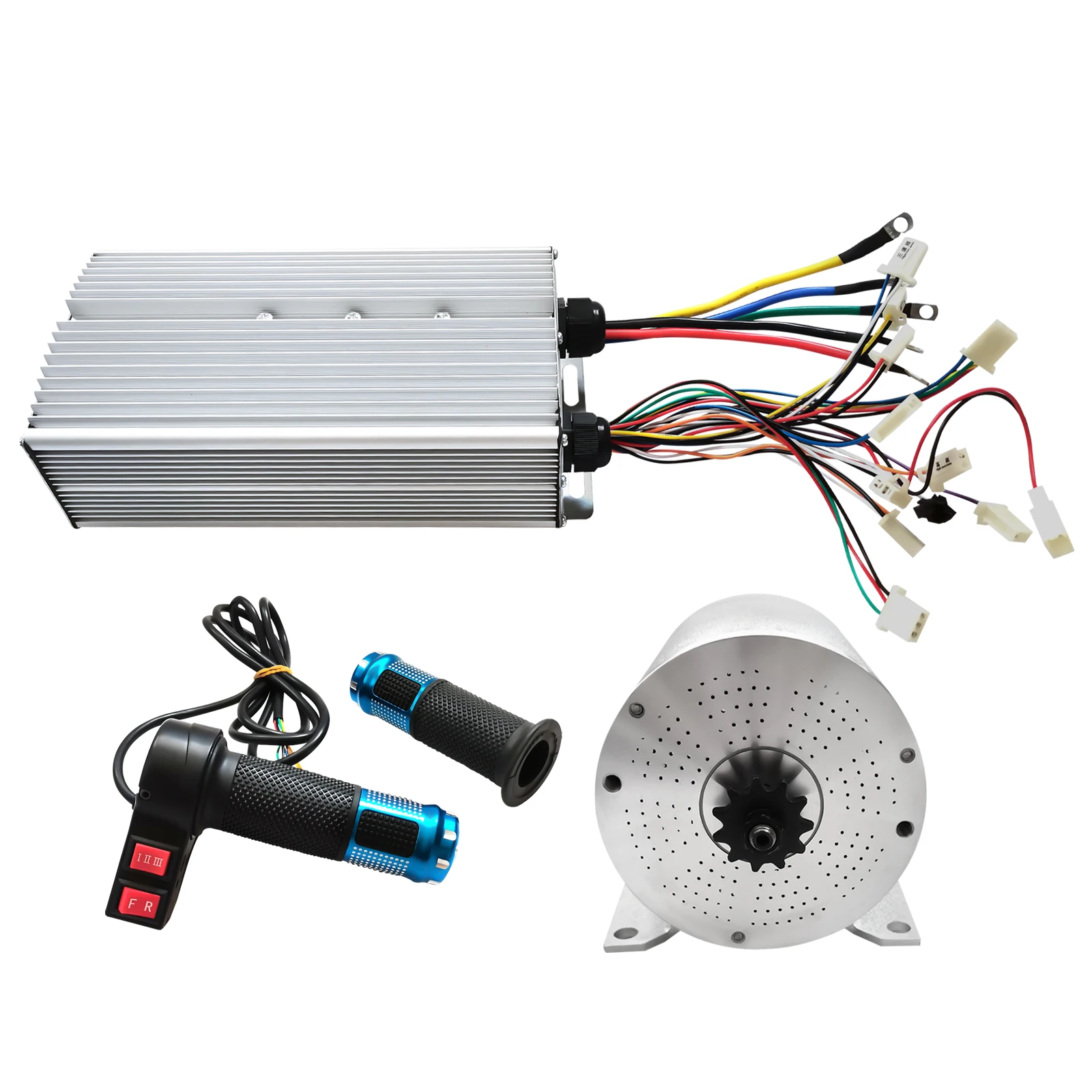

Pakett sisaldab

1*Harjadeta Mootor

1*Controller

1*A Pair Handlebar Throttle

Peamised omadused

High-quality Material: The body of the motor and controller is made of high-quality aluminum, which is rust-proof ja anti-aging. The excellent corrosion vastupanu of aluminum can extend the service life of this harjadeta motor kit.

Sufficient Power: The harjadeta motor has a rated speed of 4900rpm and a maximum speed of 6600rpm. such an excellent high-speed motor can provide sufficient power for your electric bicycle.

Three Speeds: The controller of this harjadeta motor kit has high, medium, and low three speeds,  which can adapt to different speed requirements.

Low Noise: The harjadeta motor does not have the electric sparks generated by the brush motor operation, so its operation is smoother and quieter.

Easy to Operate: The handle is equipped with back and forth running and gear conversion buttons, you only need to gently press the button to complete the running direction and running speed conversion, which is very easy and convenient.

Pure Copper Motor: The coil of this harjadeta motor is made of copper. Since copper wire has less vastupanu than aluminum wire, the pure copper motor is more energy-saving and durable.

High Power: The harjadeta motor has an output power of 3000 watts and a torque of 5.44N.m. The powerful power can provide sufficient power for your electric car to drive easily. Its 5.44N.m torque allows you to climb hills easily.

Detailid

Multiple Heat Dissipation Holes: The front and rear belts of the motor are equipped with multiple heat dissipation holes to help the motor dissipate heat in time. An excellent heat dissipation system makes the motor run more stable.

Anti-slip Handlebar Throttle: The handlebar throttle of this harjadeta motor kit adopts an uneven libisemisvastane design, which makes it not easy to slip off.

Sturdy Handlebar Throttle: The handlebar throttles are made of high-quality plastic, rubber, and aluminum. Soft rubber makes the handlebars comfortable to touch. Sturdy aluminum and plastic make the handlebar throttle less prone to damage.

Aluminum Body: The body of the controller and motor is made of high-quality aluminum, which is strong and durable.
