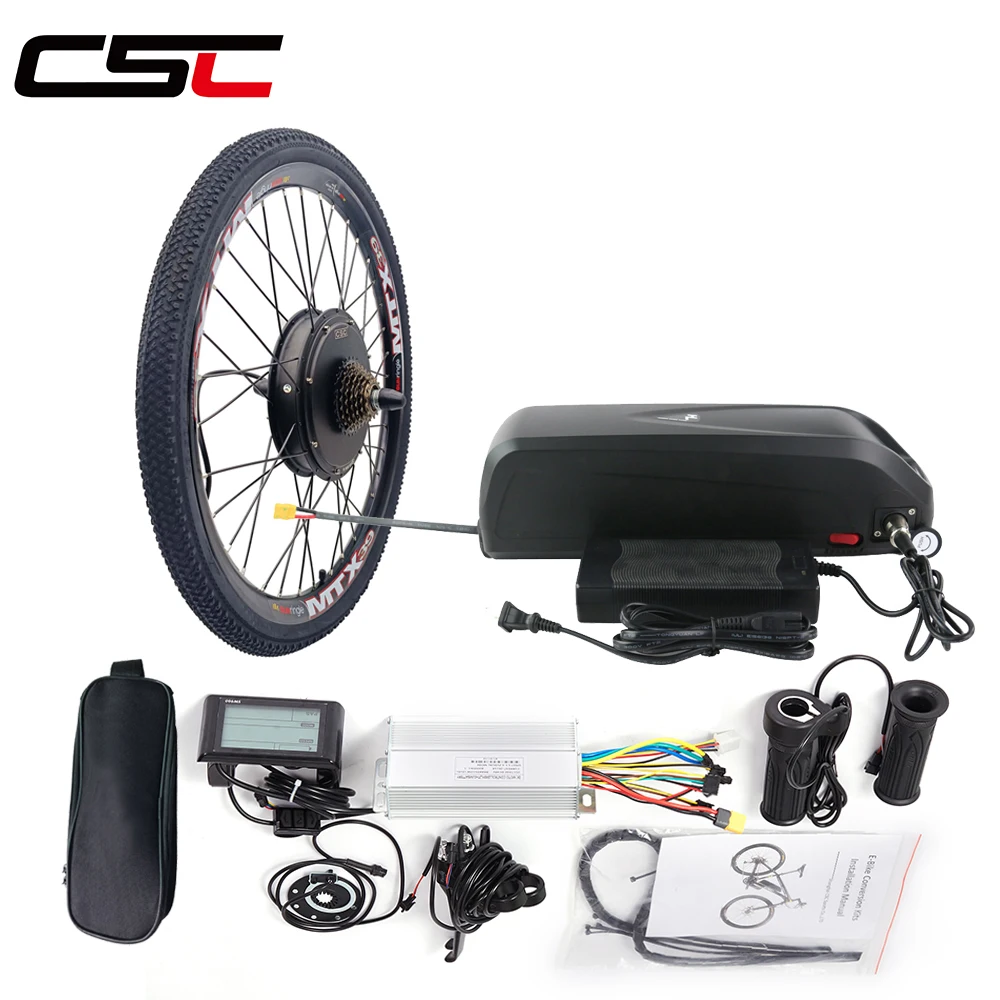

CSC e bike Conversion Kit 48V 1000W 1500W with 48V battery for 26in 27.5in 29inch e-bike motor Wheel bike Kit MTX SUNRINGLE

Product Details

1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Rim: Double-wall Aluminium Alloy Rim
3. Wheel Bottom bracket: Rear 135mm-142mm

Instruction

hub motor : 48V 1500W Brushless Non-gear Hub Motor 540RPM 45NM
48V 1000W Brushless Non-gear Hub Motor 470RPM 35NM
Controller : 18 Mosfet Dual mode Controller 45A+-1A Max Current for 1500W
12 Mosfet Dual mode Controller 30A+-1A Max Current for 1000W
6 Mosfet Dual mode Controller 20A+-1A Max Current for 250W 350W 500W
Brake levers : Power cut-off Function Non-slip Aluminum Alloy Brake levers
Throttle：Half Twist Throttle
Display : 24/36/48V LCD3 Display, Support DIY Setting
PAS : 8 Magnets Pedal Assistant Sensor
Freewheel : 7 Speed Thread Freewheel
Disc : 160mm Disc

48V 24AH Battery
Nominal Voltage: 48V
Nominal Capacity: 24Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 21700 3.7V 4800mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 5.73kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————

52V 13.5AH Battery
Nominal Voltage: 52V
Nominal Capacity: 13.5Ah
Composed Type: 14Series 3Paralles 14S3P
Cells: Powerful 21700 3.7V 4500mAh Cells
BMS: 30Amp continuous 100±10Amp maximum
Fit Motor Power : 52V 250W-750W
Charge Current: 2-5A
Charge Cut-off Voltage: 60V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.15kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————

52V 18AH Battery
Nominal Voltage: 52V
Nominal Capacity: 18Ah
Composed Type: 14Series 4Paralles 14S4P
Cells: Powerful 21700 3.7V 4500mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 52V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 60V
Discharge Cut-off Voltage: 39-42V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.99kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————

Packing List

1 * Battery

1 * battery and Charger

1 * Rear Motor wheel（20/24/26/27.5/28/29inch 700C）

1 * Tire

1 * 7 speed Freewheel

1 * 160mm Disc brake Rotor

1 * DC Controller

1 * Controller Bag

1 pair * Wuxing Power cut-off Brake lever

1 * Display LCD3

1 * 8 Magnet Pedal Assistant Sensor

1 set * Half Twist Throttle (default)
