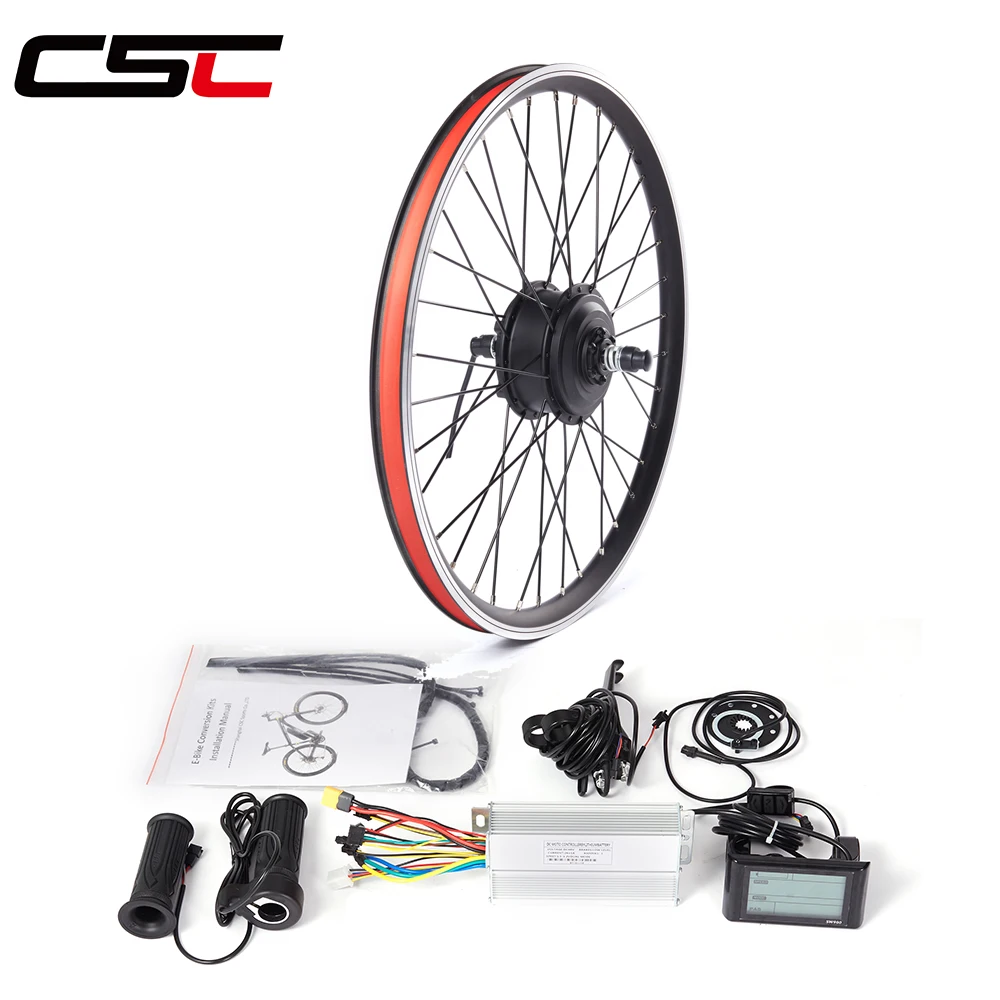

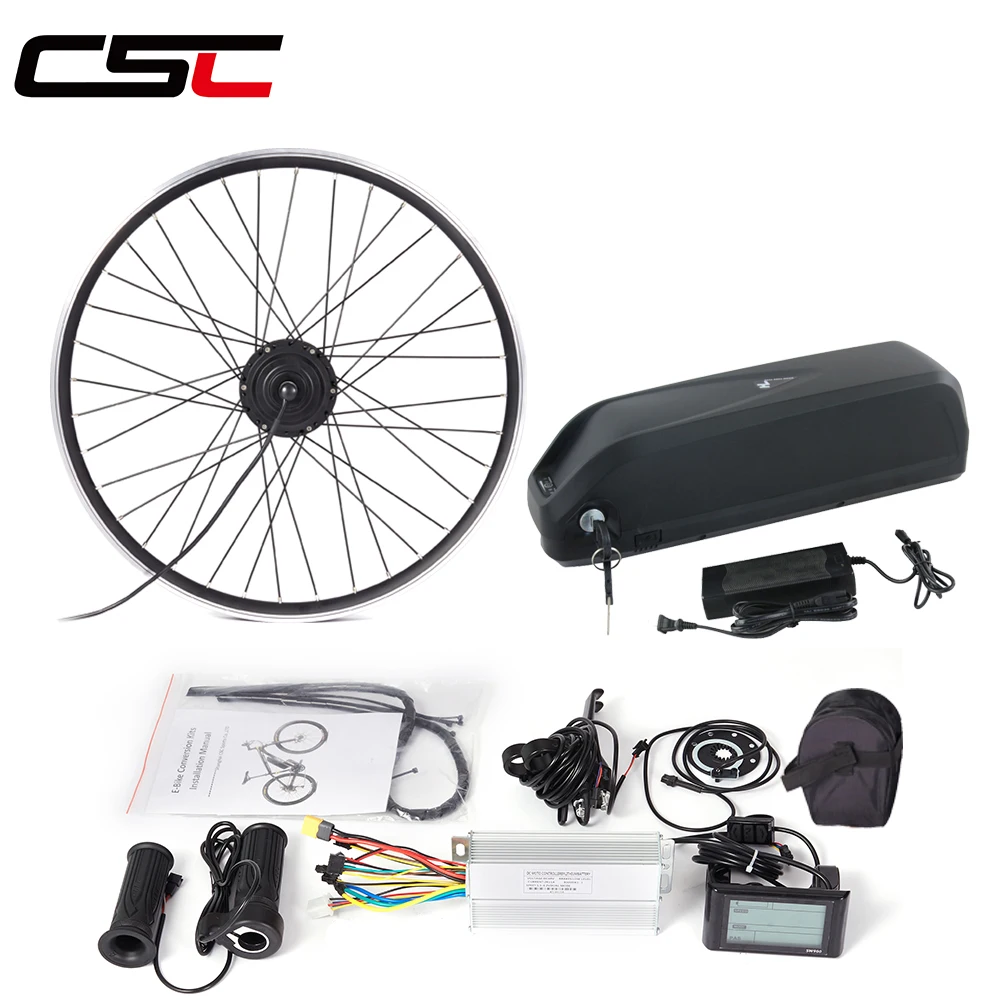

EBike Conversion Kit 36V 250W Front rear Wheel motor hub Brushless electric bicycle battery 36V 15AH for electric bike

Packing List

Noted:Conversion Kit not include , tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )
1 * battery and charger （If you order "NO battery", the battery and charger is not included）
1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever

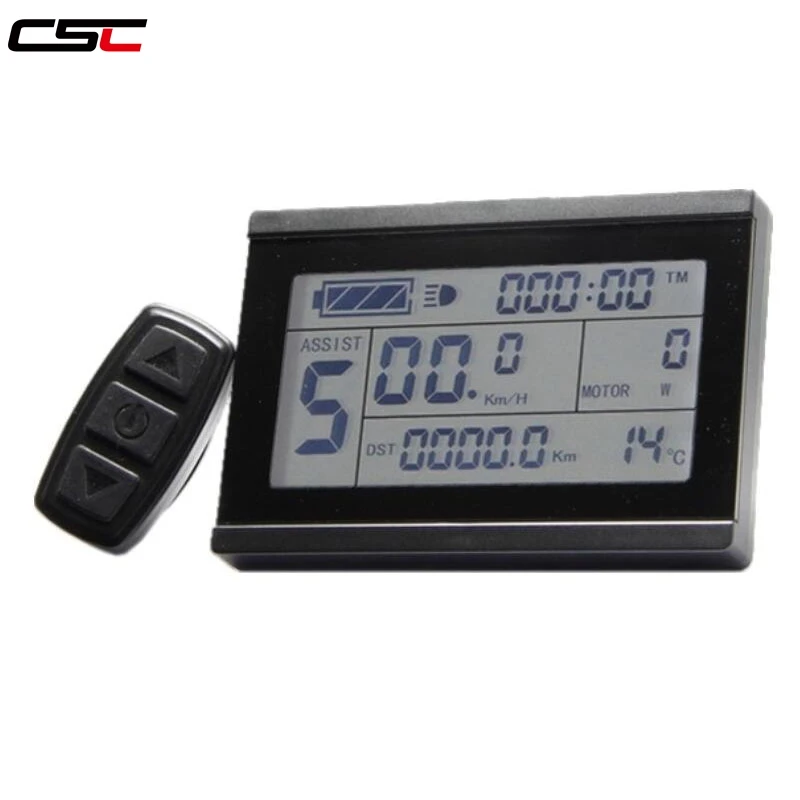

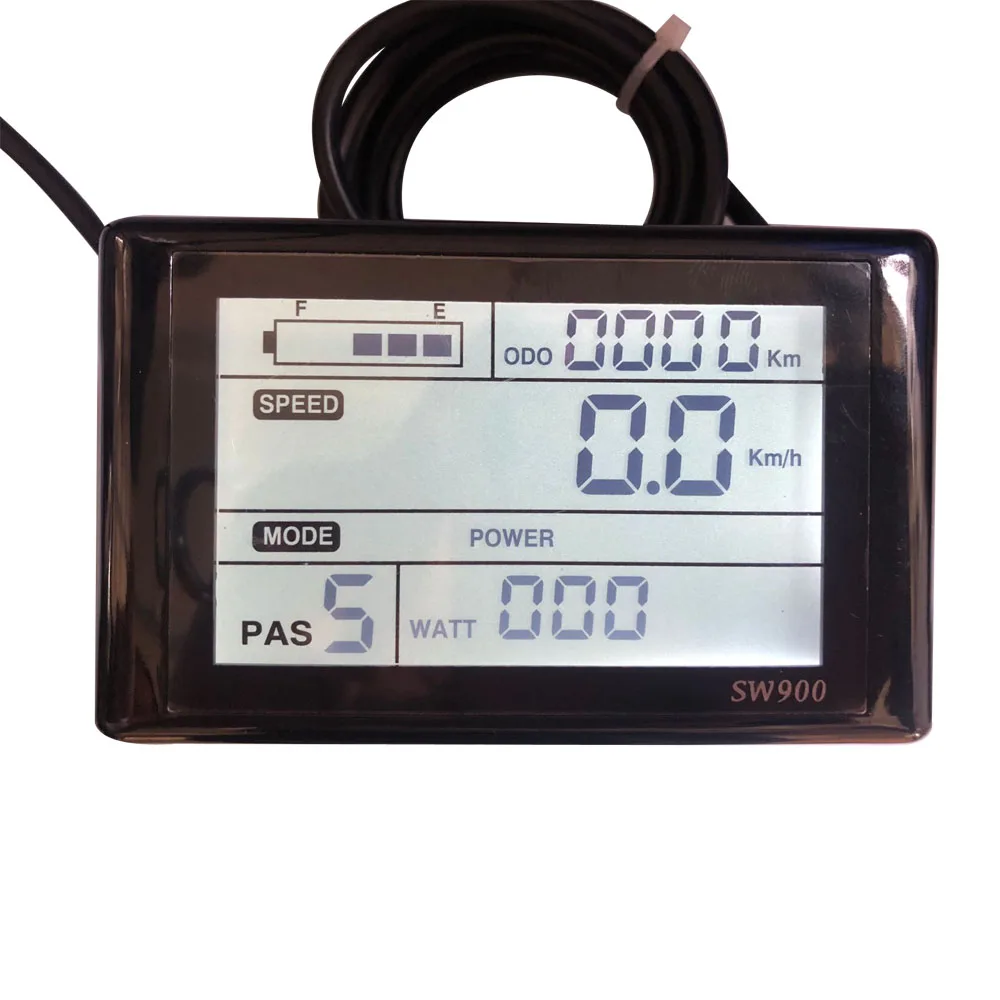

1 * Display SW900 or LCD3
1 * 8 Magnet Pedal Assistant Sensor
1 set * Throttle (The LCD3 display uses Half Twist Throttle .The SW900 display uses Twist Throttle)

Motor Wheel

1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
470 for 48V 500W 1000W
540 for 48V 1500W
7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please contact us

36V

48V

Controller Bag

PAS

KT BZ-4(8) Magnet

Throttle

LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle

Power cut-off brake leaver

battery

36V 15AH Battery
Connector for Controller: XT60
Nominal Voltage: 36V
Nominal Capacity: 15Ah
Composed Type: 10Series 6Paralles 10S6P
Cells: Powerful 18650 3.7V 2500mAh 10A 5C Cells
BMS: 20 Amp continuous 50±10Amp maximum
Fit Motor Power : 36V 250W 350W 500W
Charge Current: 2-5A
Charge Cut-off Voltage: 42V
Discharge Cut-off Voltage: 30V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 3.8kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————
48V 18AH Battery
Nominal Voltage: 48V
Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: Powerful 21700 3.7V 4500mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.77kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————
48V 24AH Battery
Nominal Voltage: 48V
Nominal Capacity: 24Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 21700 3.7V 4800mAh Cells
BMS: 40Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 250W-1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 5.73kg
Cycle life: ≥80% capacity after 800 cycles.
——————————————————————
